van Dijke Wet Leaf Remover WLR
The Van Dijke Wet Leaf Remover (WLR) is the ideal solution for the effective removal of haulms, organic matter, and other floating materials—such as corn stubble—from the product stream. This versatile machine is designed for installation either after the washing line or downstream of the destoner as a post-wash solution.
Effective haulm separation
The Wet Leaf Remover (WLR) features a robust main unit equipped with an industrially manufactured PVC discharge conveyor. This specially designed conveyor is lighter, stronger, and offers a significantly longer service life than traditional belt conveyors. Moreover, it complies with food safety standards and is finished in blue to facilitate visual inspection.
At the rear of the unit, a pump tray is integrated into the main frame. This tray includes an overflow and allows water to be pumped into the main unit using a submersible pump. The product sinks through the water flow and is deposited onto the product discharge conveyor. Lighter materials, such as foliage and other organic matter, are pushed backward by the water stream and separated from the water by a filter conveyor. The filtered material is then discharged to the side of the machine.

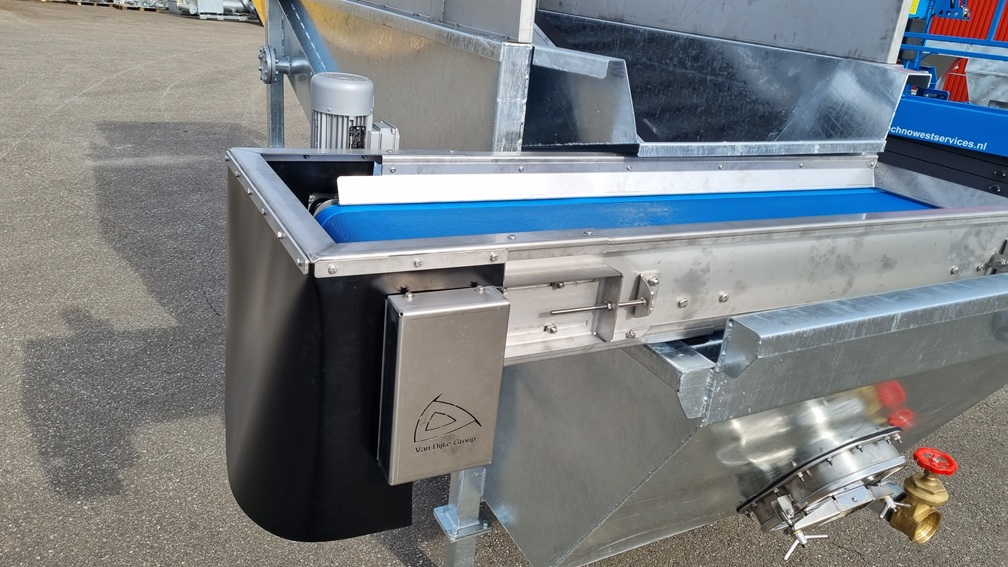

Industrial type outfeed conveyor

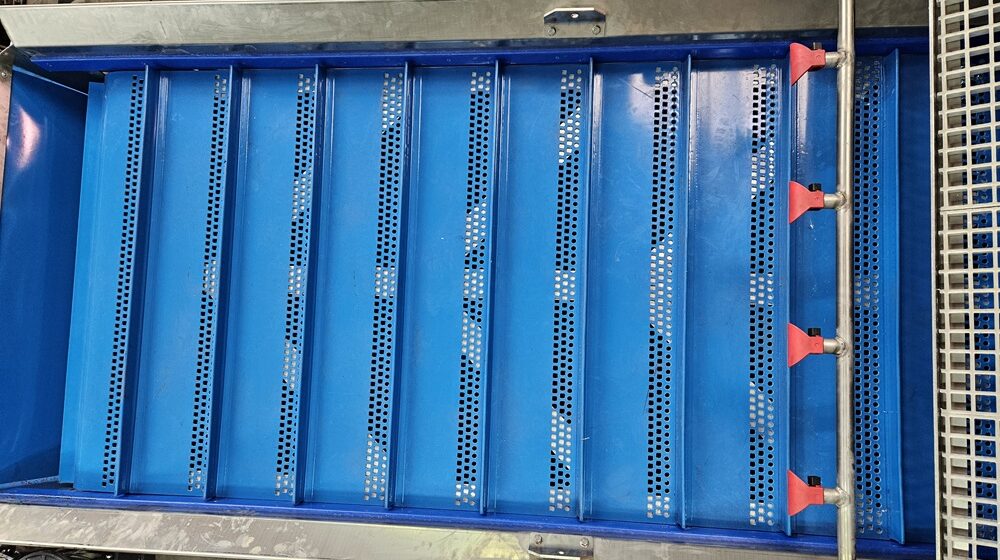

cross filtraton screen for haulm discharge
Integrated submesible heavy duty pump

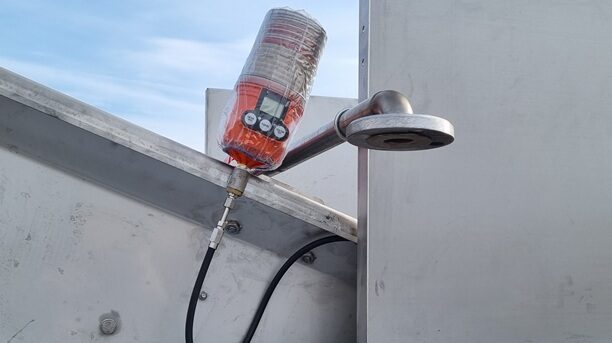

Lubricaton system on submerged bearings

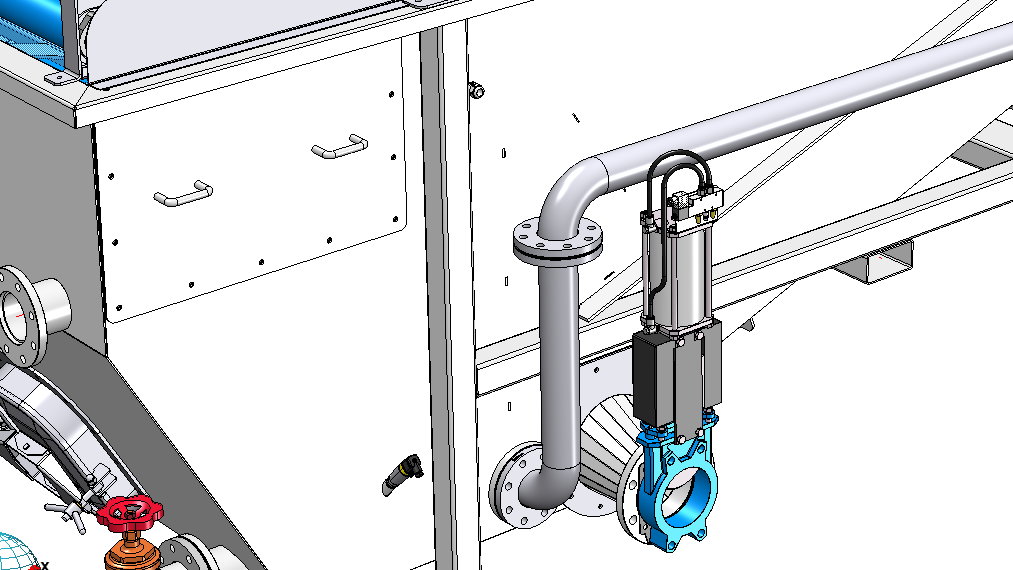

Pneumatic operateted knife-valve mud discharge

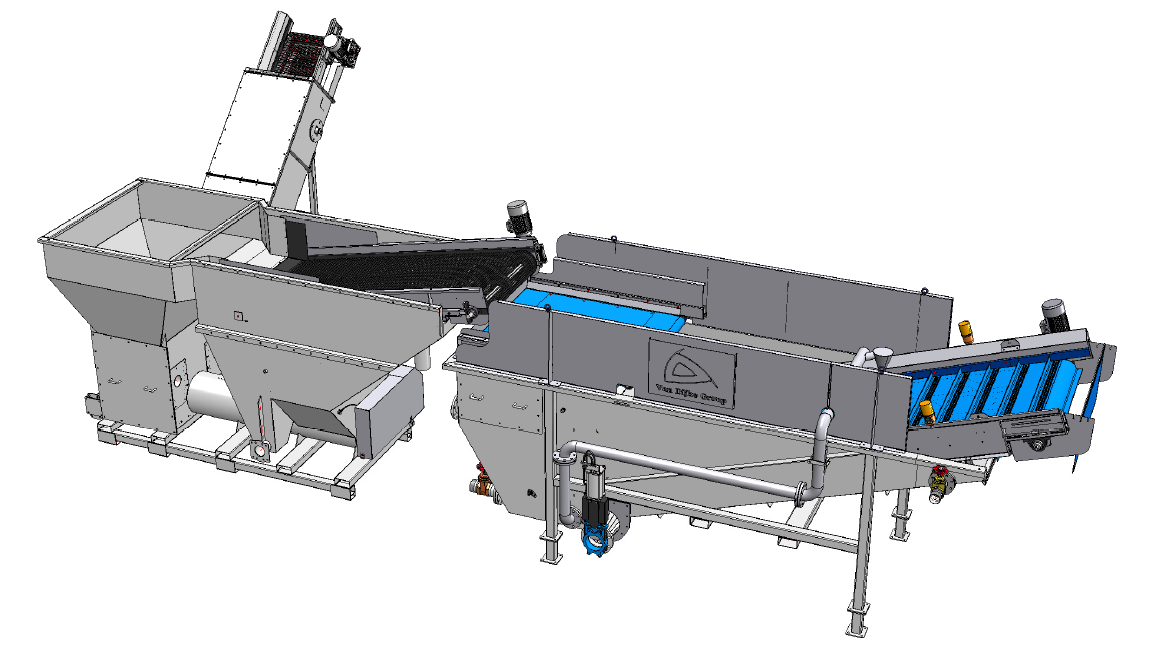

Wet Leaf remover direct after destoner unit

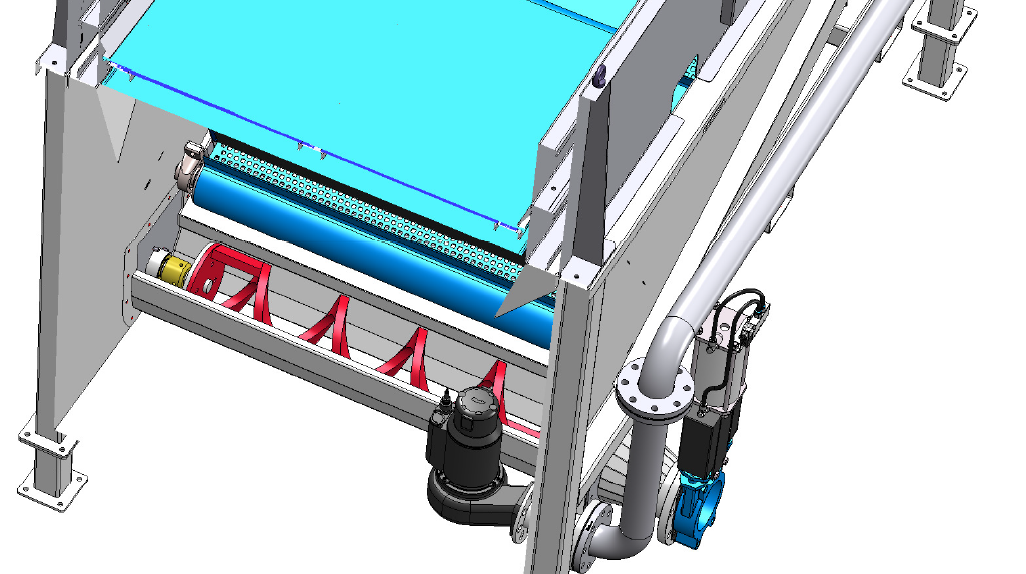

Option: shaftless cross auger (mud discharge)
Option: infeed conveyor WLR
The perfect solution for removing haulms from your product
Efficiency and versatility
The Wet Leaf Remover (WLR) provides an effective solution for removing haulms and other floating materials, and is also suitable for eliminating rejects such as glass potatoes or hollow hearts. The operating principle of this unit is based on the difference in specific density between the product being processed, which sinks in water, and debris or organic debris, which floats.
With the Van Dijke Wet Leaf Remover (WLR), unwanted materials are efficiently removed from the product stream, while overall process efficiency is enhanced. It is an indispensable solution for production environments that aim for optimal product quality.
Capacities and models
Onderstaand een overzicht van de beschikbare gemiddelde capaciteiten en uitvoeringen. Heeft u andere wensen? laat het ons weten en we maken graag een aangepaste aanbieding voor u.

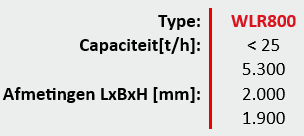

Wet Leaf Remover WLR800
up to 25 tons/hour

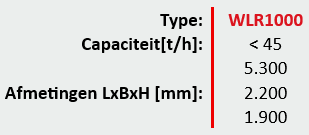

Wet Leaf Remover WLR1000
up to 45 ton/hour
Wet Leaf Remover WLR1200
up to 70 ton/hour
