Bucket Dredger


Van Dijke’s Bucket Dredger: give your washing line the finishing touch! With this dredger you can bring the settled sludge our of your washing line directly into a truck.

How does the Bucket Dredger work?

The bucket dredger is mainly used for handling the sludge and bring it into a truck or bin/tank. The system is able to process liquid form (water) as well as thick sludge, dirt and stones. The dredger is equipped with a conveyer belt with steel buckets, mounted on 3 extra strong nok-belts. The bucket dredger is a smart design which means that all the driven parts are placed outside of the machine. To simplify maintenance, the machine is designed so that all important parts of the system can be easily reached. Also various inspection covers are placed for easy access and cleaning purposes.

The specifications of the Bucket Dredger:
  • Type BD-400
    • Capacity: <10 m^3/h
    • Power: 3x 480VAC 60 Hz
    • Fuse: 3x 16 A
    • Drive: 1 motor-gearbox
    • Dirt removal: left or right
  • Type BD-500
    • Capacity: <15 m^3/h
    • Power: 3x 480VAC 60 Hz
    • Fuse: 3x 16 A
    • Drive: 1 motor-gearbox
    • Dirt removal: left or right:
    • Option: frequency drive


Gallery

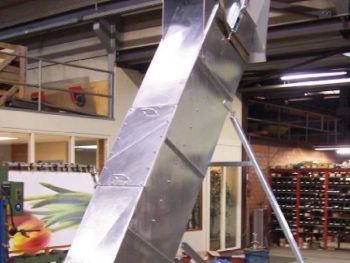

  • Bucket Dredger

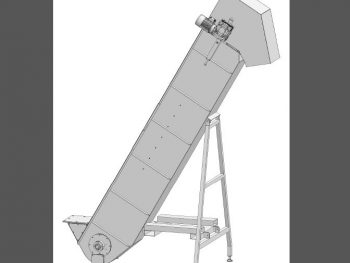

  • Bucket Dredger

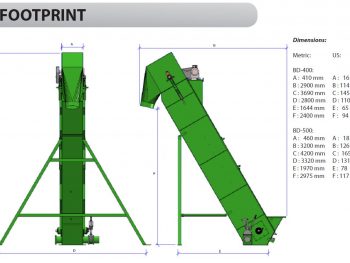

  • Bucket Dredger
